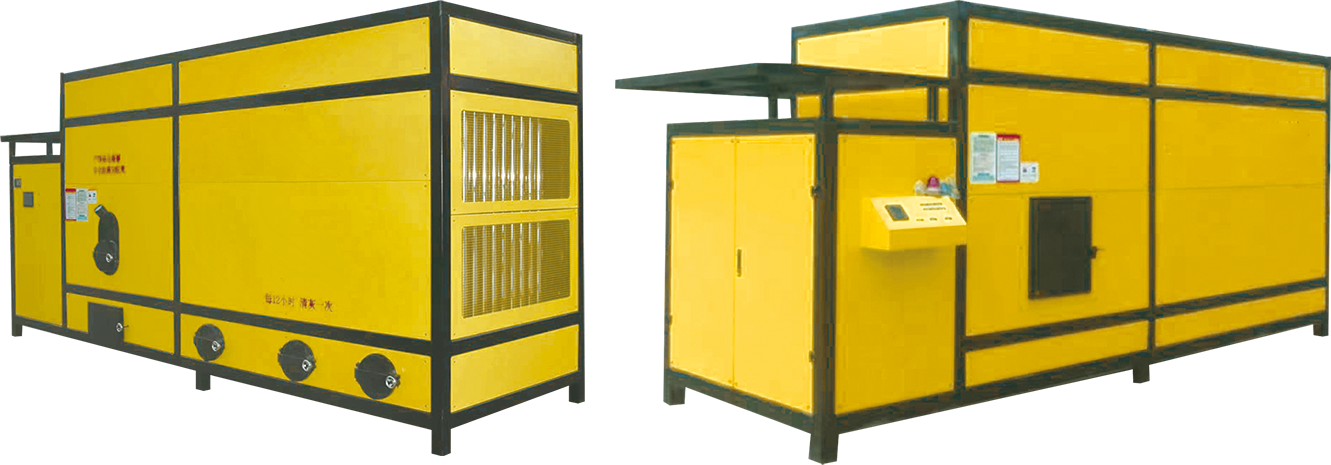

5L系列節能環保生物顆粒熱風爐

5L series energy saving and environmental protection biological particle hot blast stove

5L-60、75、90、120系列節能環保型兩用熱風爐工作原理：

生物顆料、木柴等燃料送入爐膛燃燒，產生熱量，燃燒過后煙氣輸入熱交換器中多次循環后排出，冷風經過交換器外壁加熱后輸出，提高熱效率，節約能耗，有效的降低成本。升溫快，燃燒充分，灰渣少。排煙量低，經過除塵，符合國家環保標準要求。

The working principle of 5L-60、75、90、120 series hot air stove:

The fuel of biomass particles,firewood and so on is sent into the stove combustion to produce heat and flue gas,the flue gas is input to the heat exchanger and then discharged after many cycles,the cold wind is output after heating through the outer wall of the exchanger to the thermal efficiency,it has the characteristics of improving heat efficiency,heating up quickly,saving energy and reducing the cost effectively.Fast heating,full combustion and less ash produced.The exhaust volume is low,and after dust removal,it meets the requirements of national environmental protection standards.

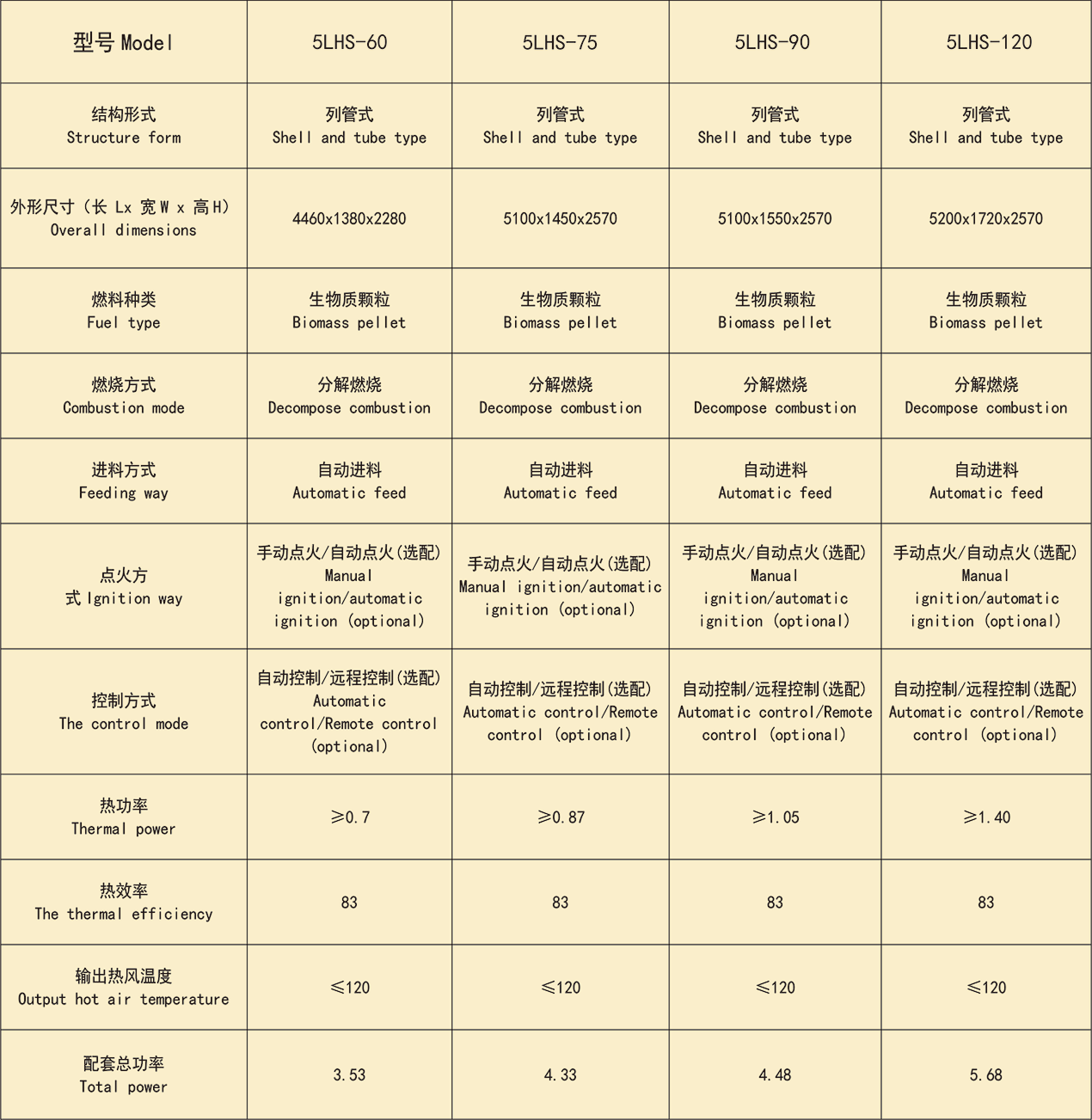

5L系列節能環保生物顆粒熱風爐——技術參數

備注：

1、上表所列參數的實際數值會因外界氣溫、相對溫度、燃料品質、及然料干濕度而有所差異。

2、上表中的數據僅供參考，因產品技術不斷改進，本公司更改后恕不另行通知。

Remarks:

1、The actual value of the parameters listed in the table above will be different from outside temperature，relative temperature，fuel quality and fuel dry humidity.

2、The data in the above table are for reference only.Due to the continuous improvement of product technology，the company will not be notified without further notice.
